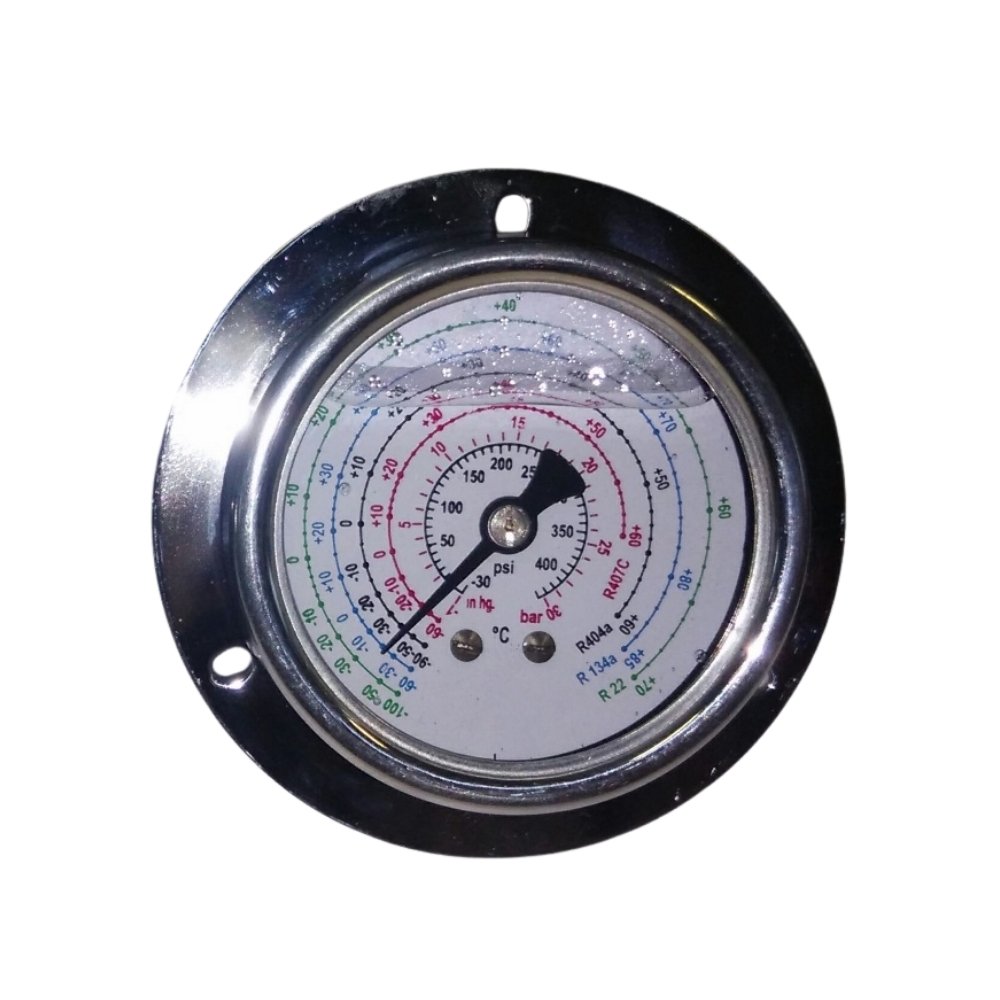

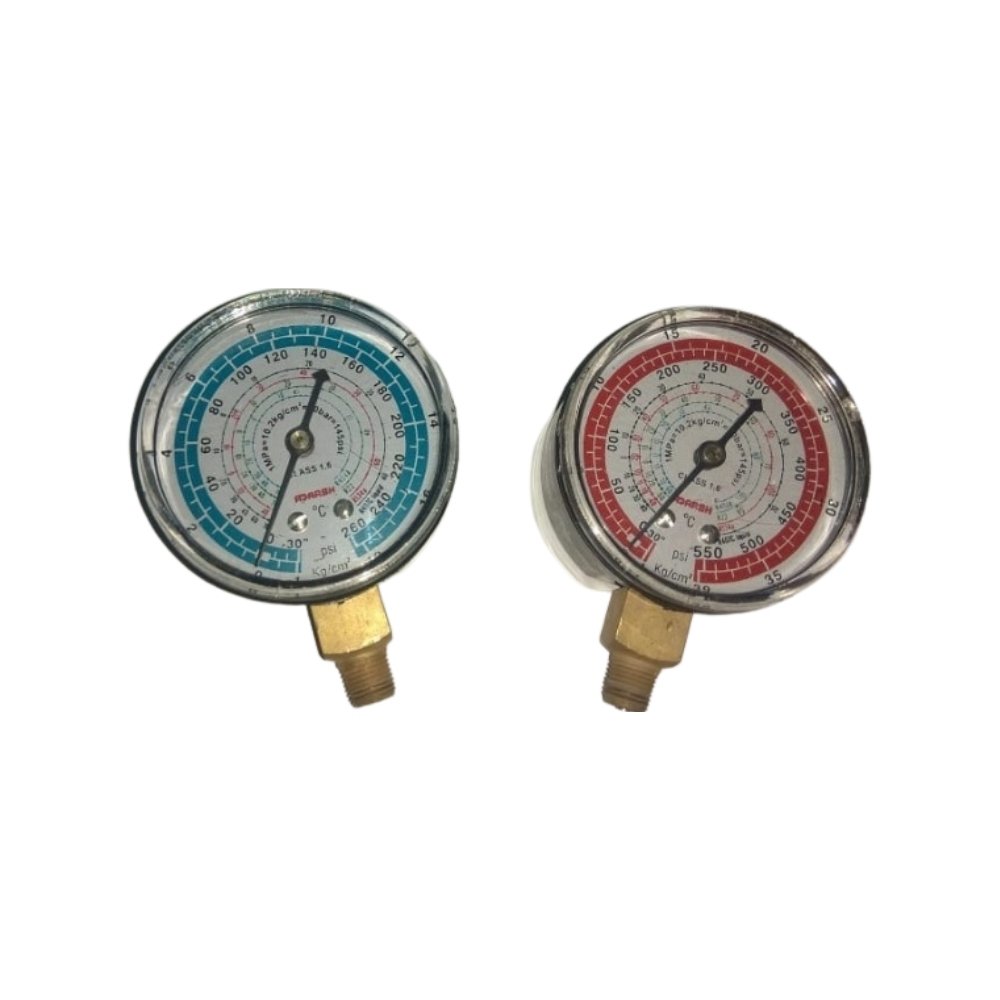

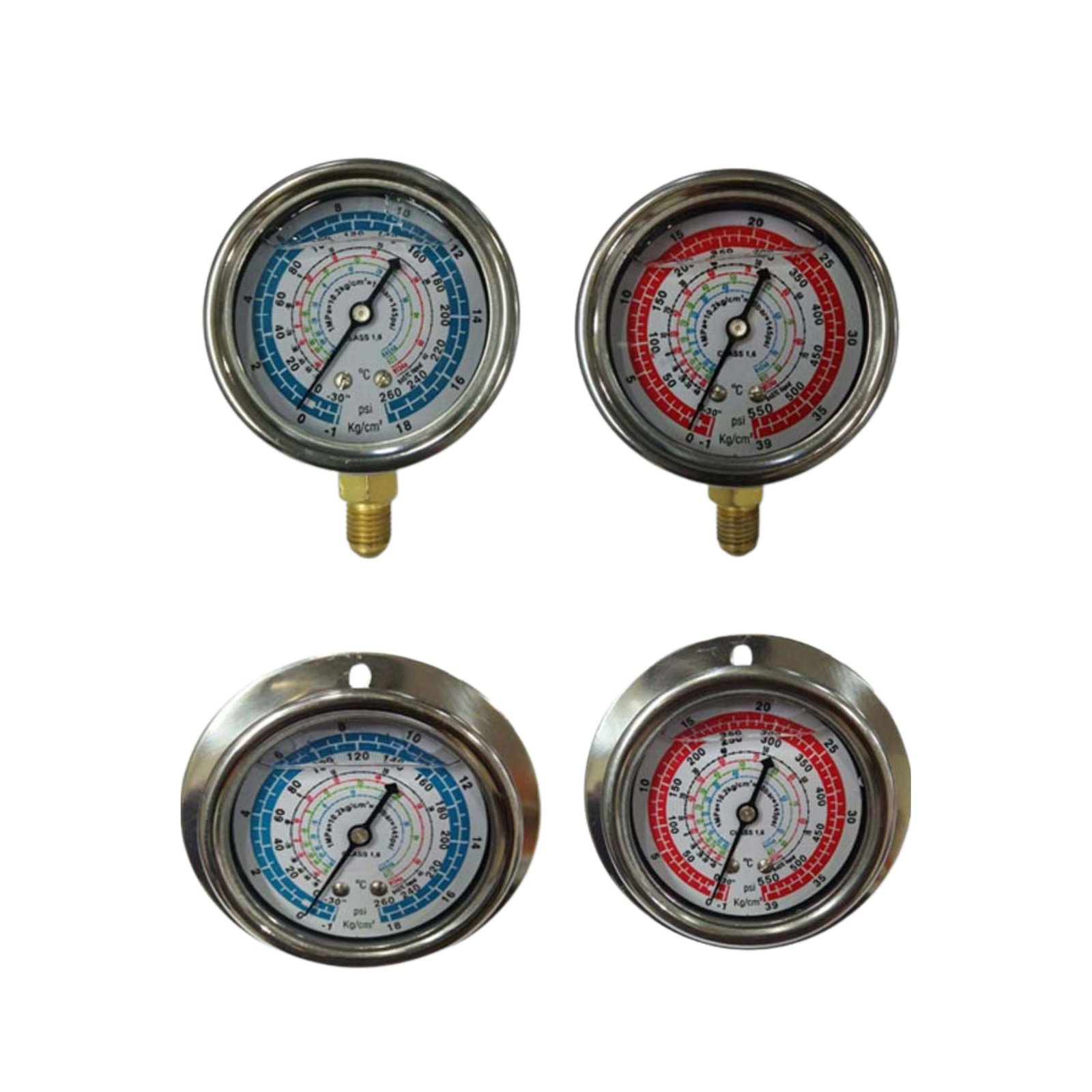

- Dual scale for pressure and temperature
- Calibrated for multiple refrigerants (R22, R134a, R404A, etc.)
- Color-coded dials for easy identification (low/high side)
- Suitable for vacuum and pressure measurement
- High leak-tight construction
- Durable design for HVAC servicing use
- Optional liquid-filled for vibration resistance
Dial Size: 63 mm / 100 mm
Accuracy: ±1.6% / 1% FSD
Bourdon Tube: Copper Alloy / Stainless Steel
- Window: Acrylic / Glass
- Connection: 1/8” npt / ¼” npt / 3/8” bsp / ¼” Flare (SAE)
- Protection: IP67
- Mounting : Bottom / Surface / Back / Panel / Clamp
- Operating Temperature: -20°C to +65
- Glycerin Filled
- Air-conditioning systems
- Refrigeration units & cold storage
- HVAC maintenance and servicing
- Compressors and chillers
- Heat pump systems
