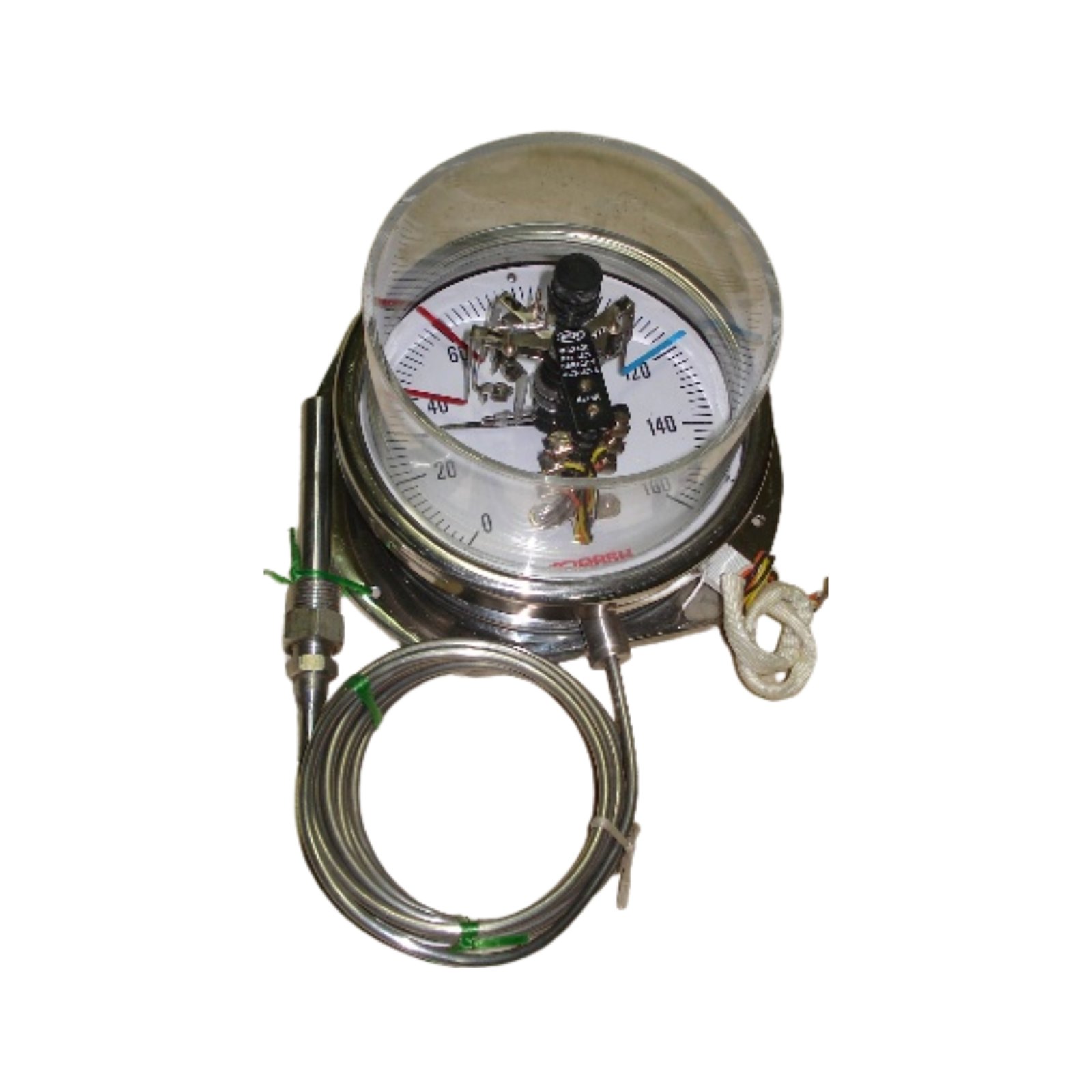

- Dual function: Temperature indication + electrical switching
- Adjustable set points for high/low temperature control
- Reliable contact mechanism for automation systems
- Clear dial for easy monitoring
- Robust design for industrial applications
- SAMA Class III-B Temperature Gauge Compensation in all thermometers
- Long operational life with minimal maintenance
- Boilers and heating systems
- Industrial process control
- HVAC systems
- Oil and gas industries
- Chemical and pharmaceutical plants
- Power plants and utilities
- Dial Size: 100 mm, 150 mm
- Temperature Range: -50°C to 600°C (custom ranges available)
- Mounting: Bottom / Surface / Back / Panel / Clamp

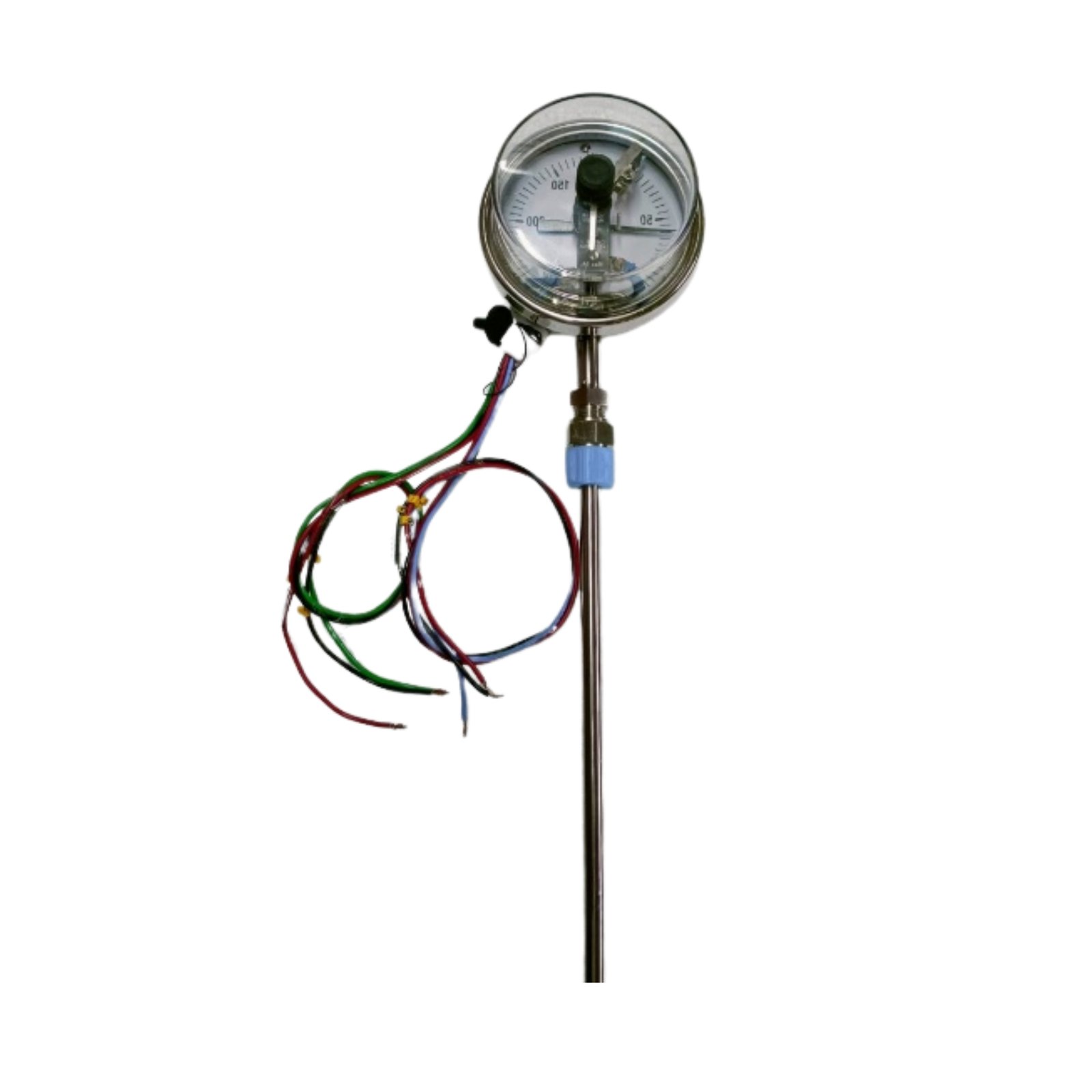

- Ridig Stem Type or Capillary Type
- Capillary Length: std 3 meters , available upto 35 meters
- Gauge Accuracy: ±1% FSD
- Switching Accuracy : ±2% FSD
- Case: Stainless Steel
- Lens: Toughened glass
- Contact Type: Snap Action
- Std Switching Output: 1NO+1NC (2 SPST), others available
- Contact Rating : 230VAC, 100mA max (higher load available, DC also)
- Dual or multiple contact points : 1NO, 1NC, 1NO+1NC, 1NC+1NO, 2NO, 2NC,
also available 1SPDT or 2SPDT - Glycerin or Silicone oil-filled case for vibration damping
- Higher contact ratings : 220VDC, 5A or 230VAC, 5A (or 10A)
- Thermowell in SS / Brass with various thread sizes
- Custom dial marking and tagging
