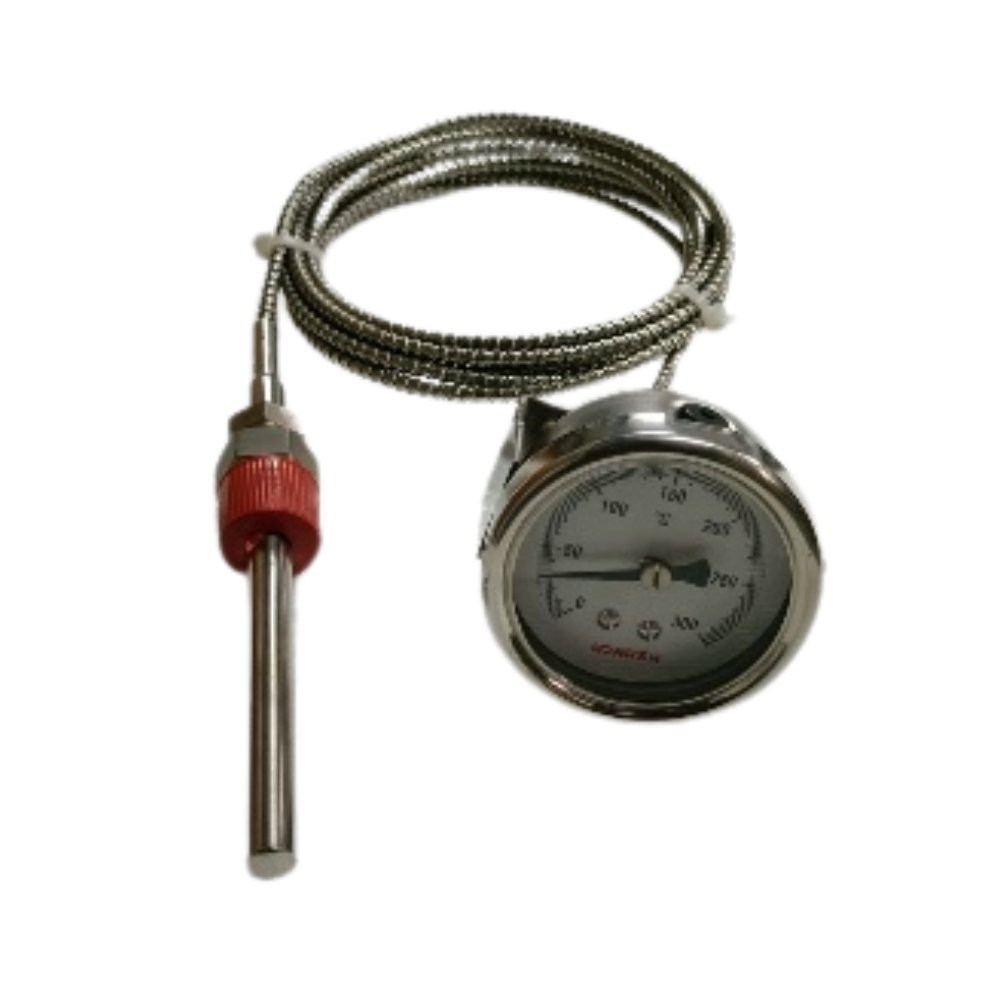

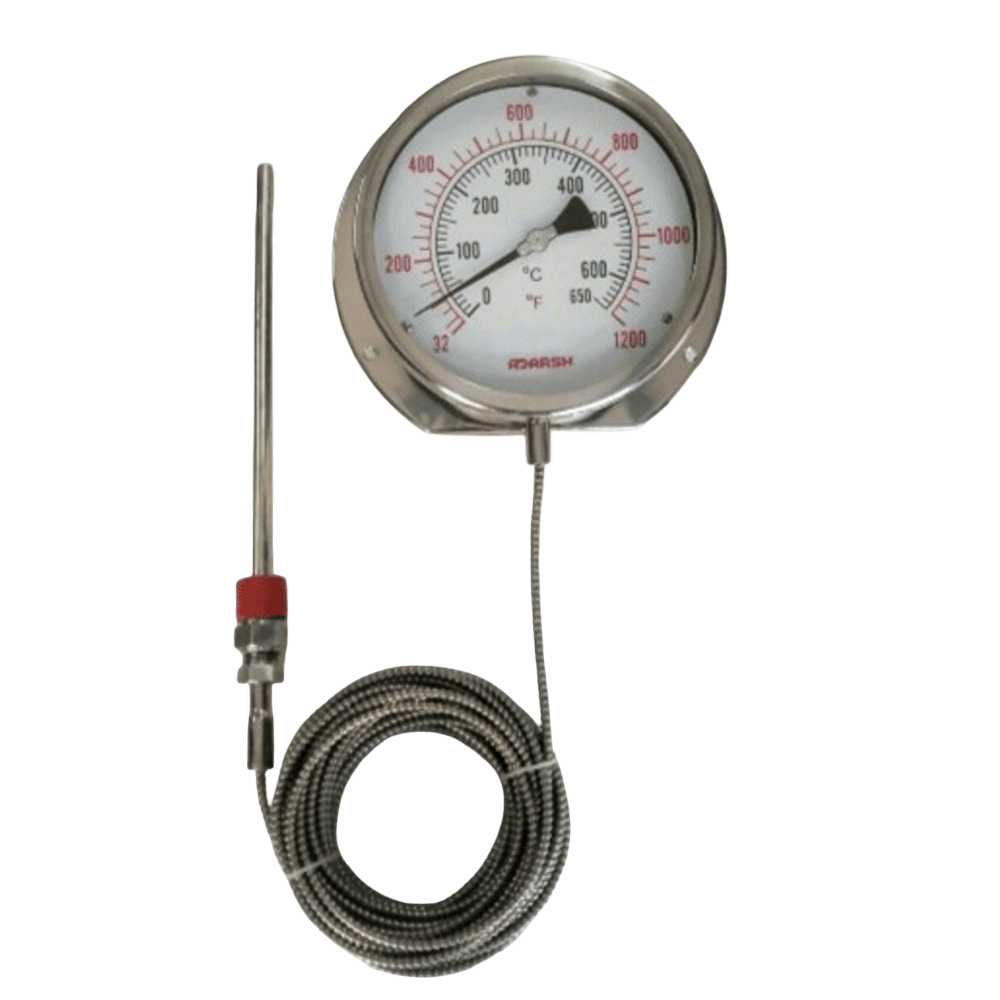

- Capillary type for remote temperature measurement
- Fast response due to gas expansion principle
- High accuracy and repeatability
- Accuracy as per SAMA Class III-B (±1% F.S.) with ambient (case) temperature compensation (4” to 10” dial size)
- Suitable for long-distance installations
- Robust construction for industrial use
- Stable performance over wide temperature ranges
- Available with capillary upto 35 meter

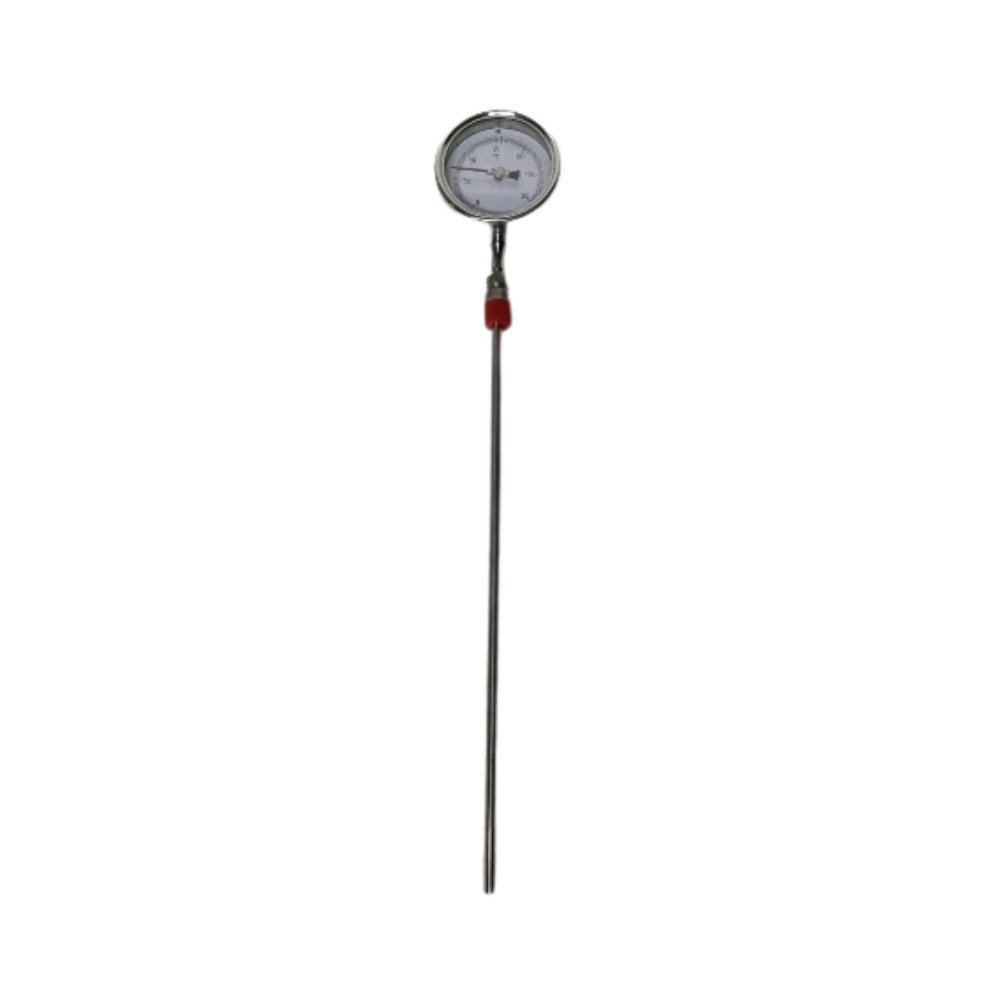

- Max Stem length upto 2 meter
- Standard Internal Microbore Capillary SS316L
- Boilers and steam lines
- Oil and gas industry
- Chemical and petrochemical plants
- Power generation units
- HVAC and refrigeration systems
- Industrial process equipment
- Dial Size: 63mm, 100 mm, 150 mm , 200mm, 250mm
- Temperature Range: -50°C to 600°C (depending on application)

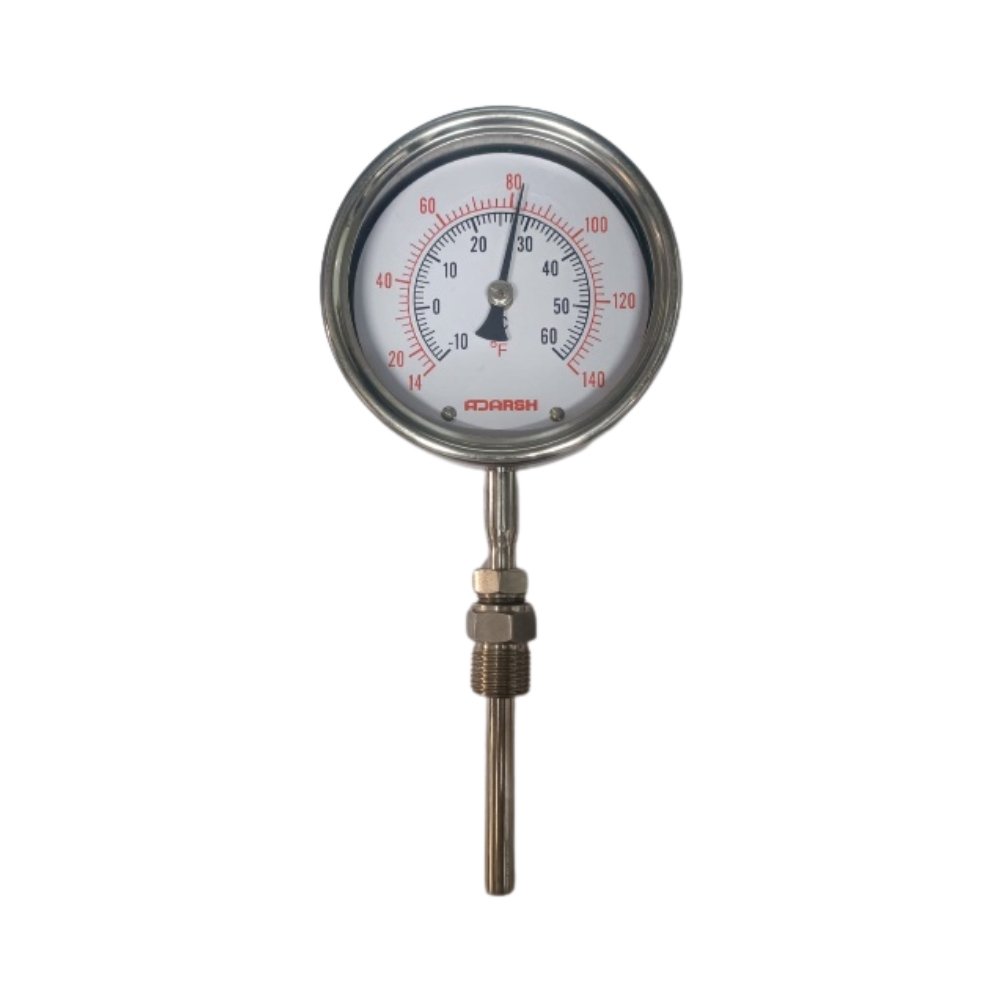

- Rigid Stem type or Capillary Type
- Capillary Length: Up to 35 meters (customizable)
- Stem length : 300mm std (customizable)
- Connection : ½” bsp adjustable (other available)
- Mounting: Panel / Surface / Bottom / Back entry
- Accuracy: ±1% of full scale for all , except ±1.6% FSD for 63mm
- Case: Stainless Steel
- Stem Material: Stainless Steel
- Lens: Toughened glass
- Filling: Inert gas (Nitrogen)
- ¾” bsp/npt or M20x1.5/M27x1.5 or customized connections
- Armoured capillary for mechanical protection
- Glycerin / Silicone oil-filled case for vibration damping
- Thermowell in SS / Brass
- Adjustable mounting brackets
- Custom dial markings and ranges

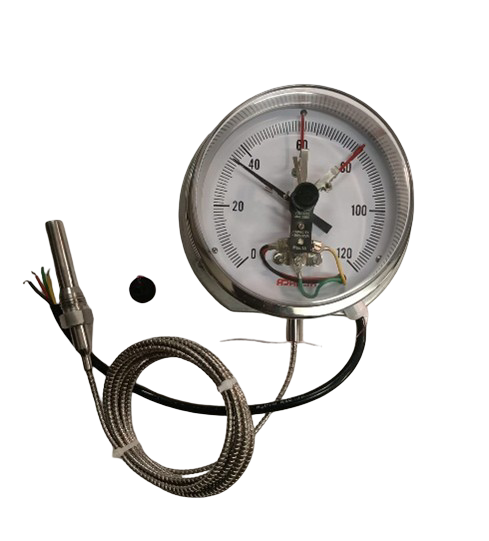

- Electrical contacts (optional) for control applications
- Maximum Pointer

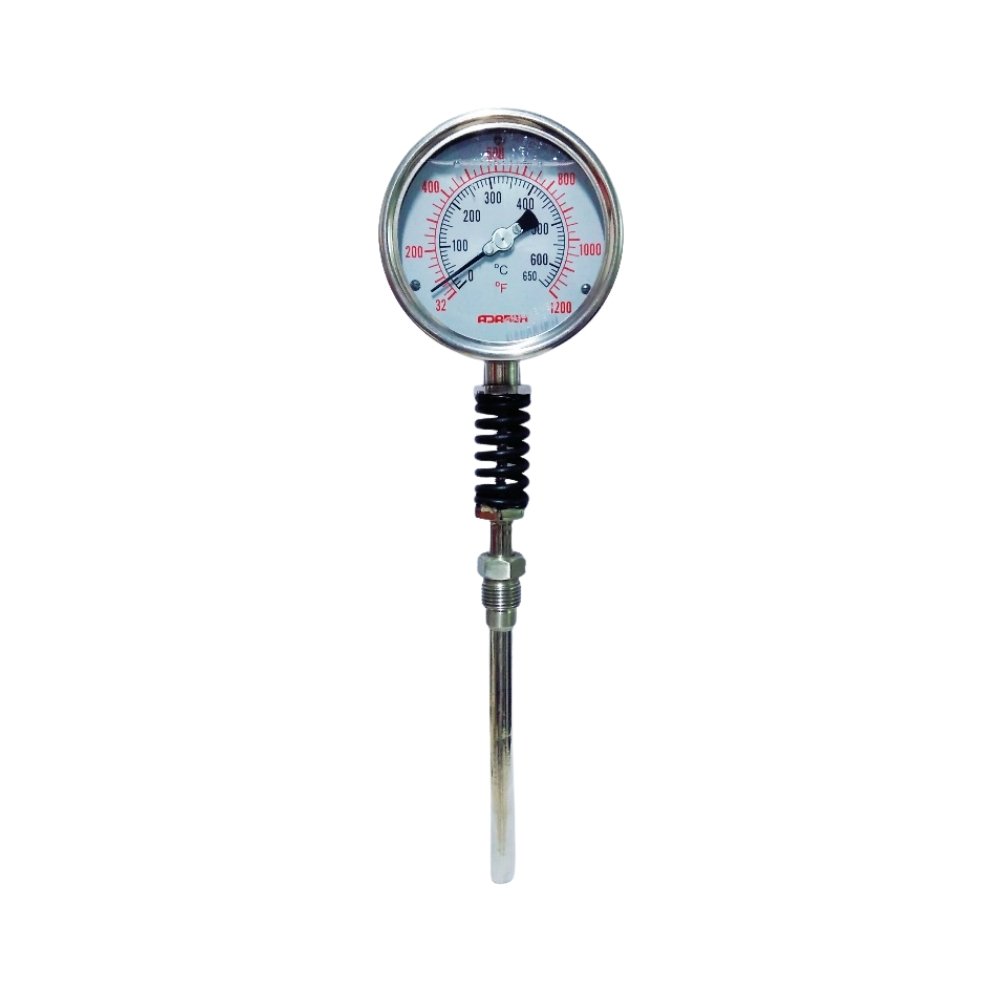

- Antivibration Spring

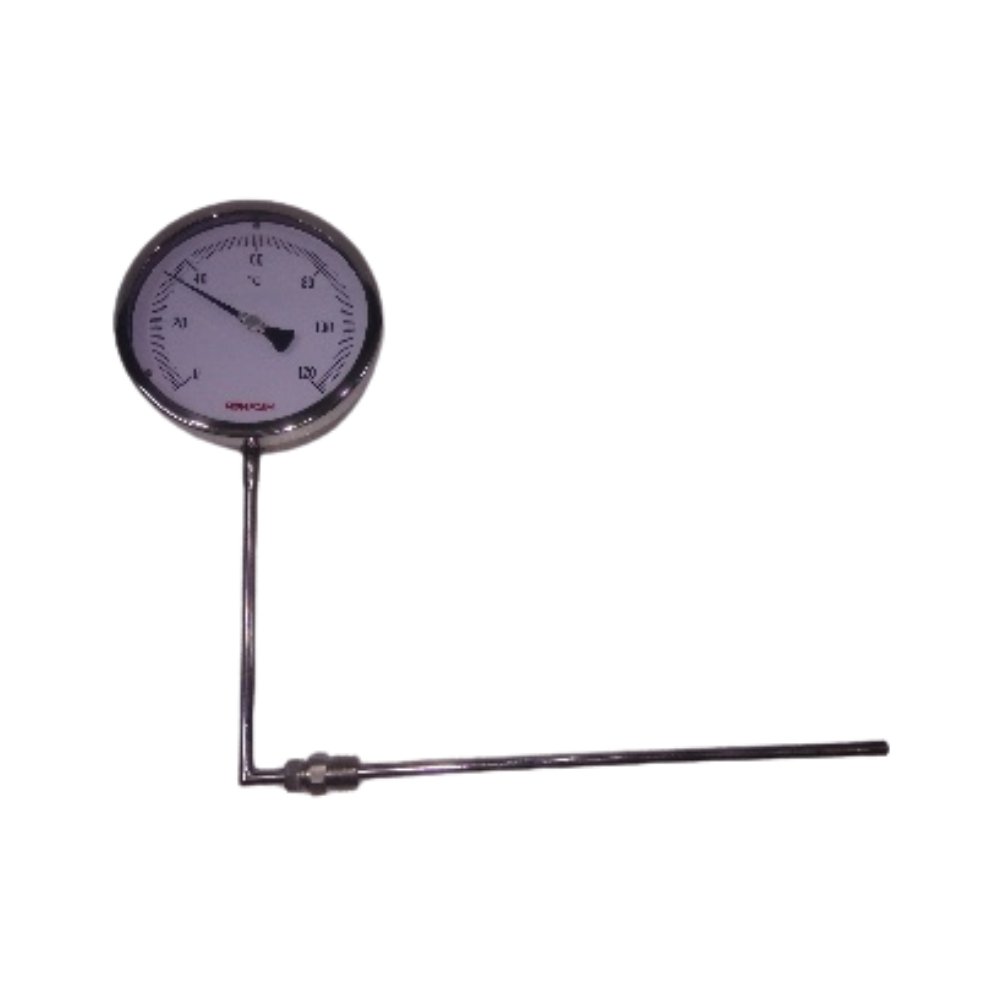

- L shape Stem (90 deg Bent stem)

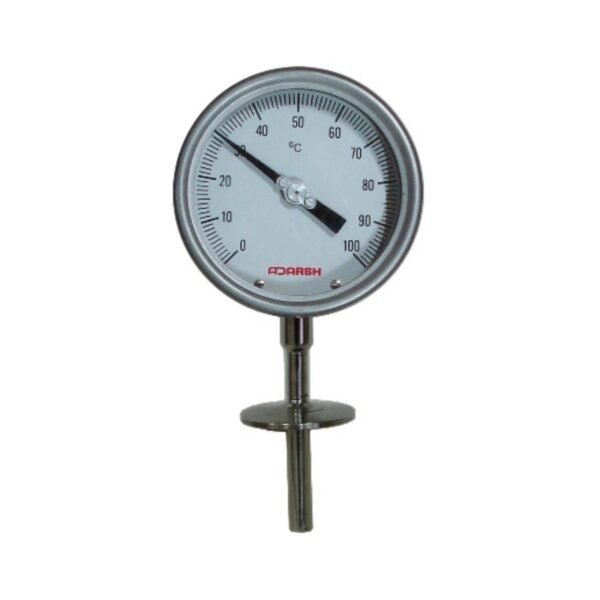

- Hygenic TC Triclover Connection
- All-Angle (every angle) version
