Usage
- Provides isolation of process pressure from instruments
- Enables equalization in differential pressure systems
- Allows venting and draining for safe maintenance
- Facilitates calibration and zero balancing
- Reduces leakage points with compact integrated design
Applications
- Differential pressure transmitters (DP transmitters)
- Flow measurement systems (orifice, venturi, etc.)
- Oil & Gas industries
- Chemical and petrochemical plants
- Power plants and refineries
- Instrumentation and control systems
- Product Type: Manifold Valve Assembly
- Types Available: 2-Valve / 3-Valve / 5-Valve
- Body Material: Stainless Steel (SS304 / SS316)

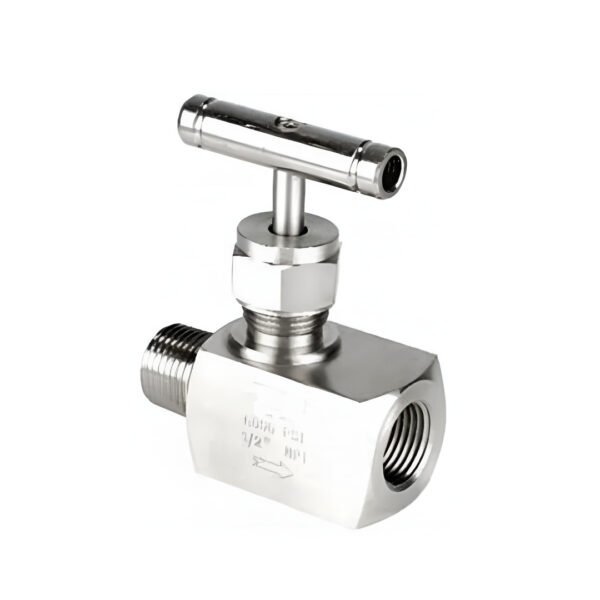

- Valve Type: Needle Valve Construction
- Connection Type: Threaded (BSP / NPT) / Flanged (optional)
- Instrument Connection: Direct mounting / Remote mounting
- Pressure Rating: Up to 600 bar (model dependent)
- Temperature Range: Up to 232°C (PTFE) / Higher also available
- Packing: PTFE / Grafoil
- Mounting: Direct mount with transmitter / Pipe mounting

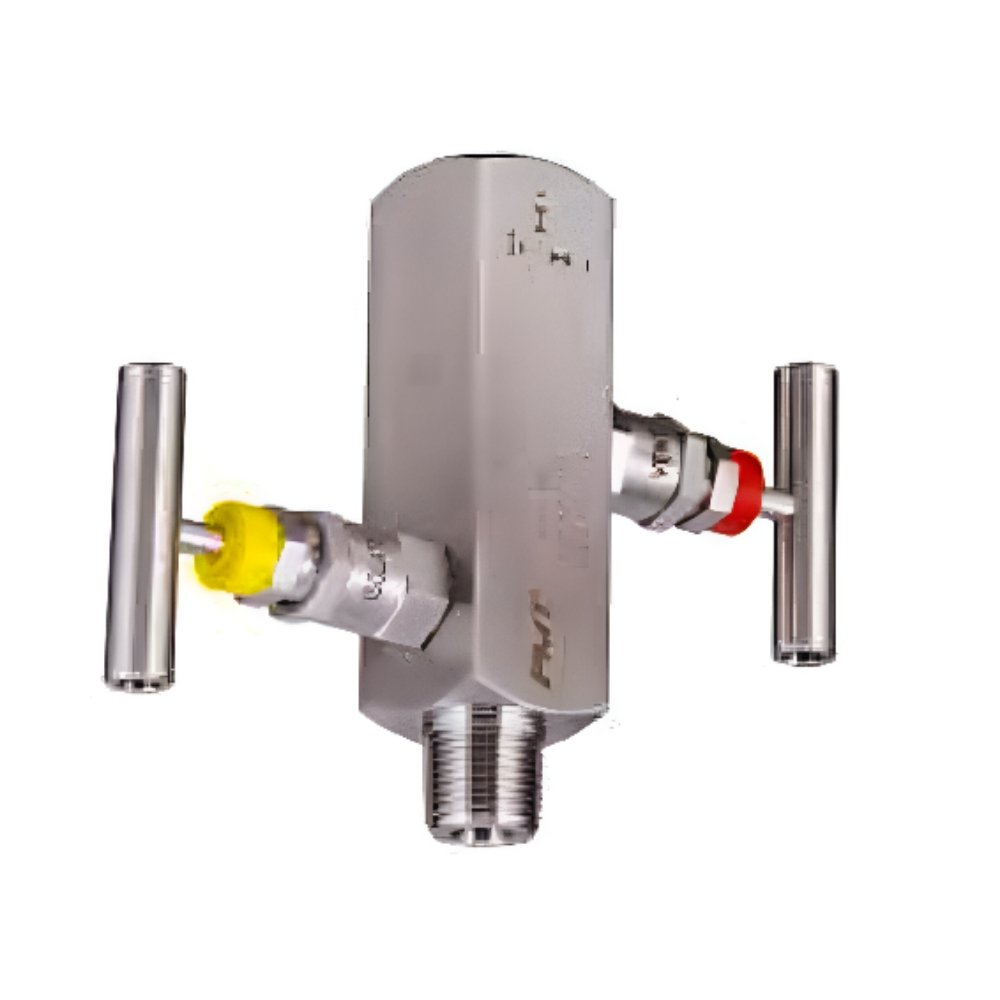

2-Valve Manifold
- Used for basic isolation of high and low-pressure lines
- Suitable for static pressure applications

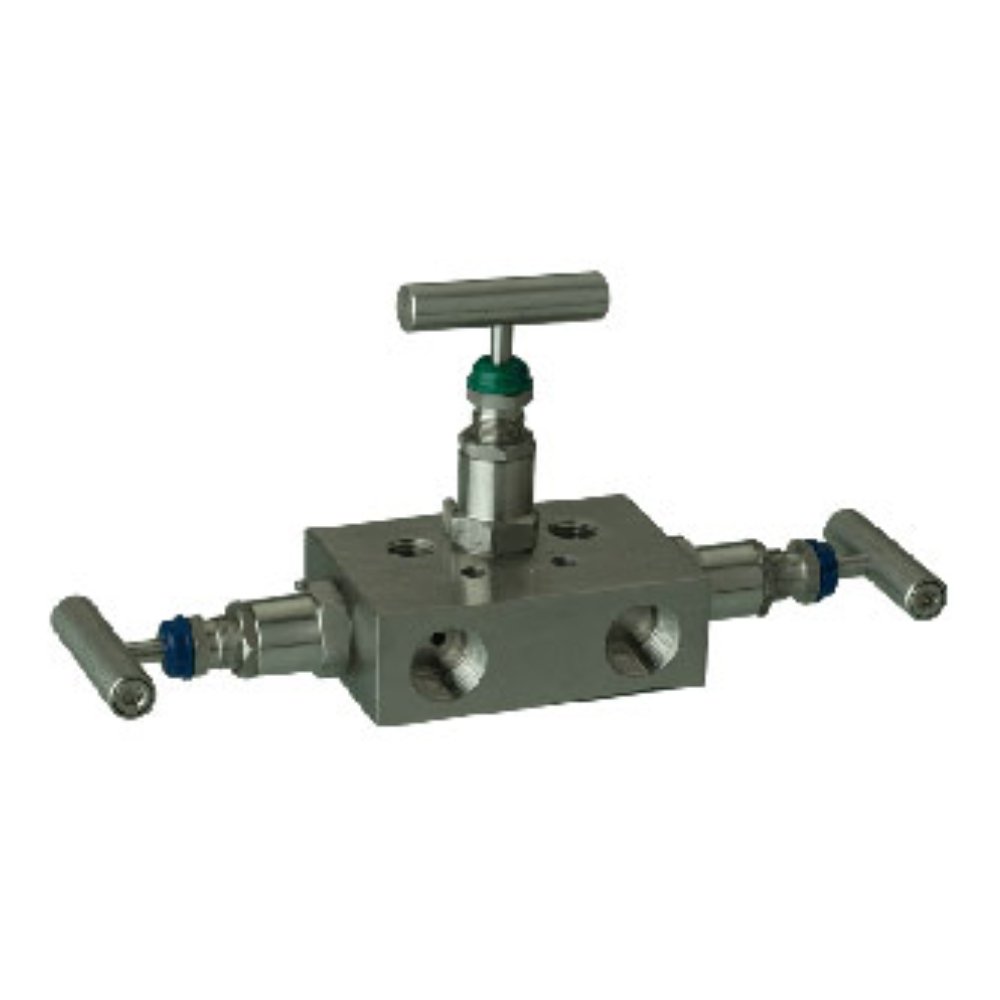

3-Valve Manifold
- Includes 2 isolation valves + 1 equalizing valve
- Used in differential pressure measurement systems
5-Valve Manifold
- Includes 2 isolation + 1 equalizing + 2 vent/drain valves
- Ideal for advanced calibration and maintenance
Orientation Available for all above Pipe to Pipe, Pipe to Flange, Flange to Flange
