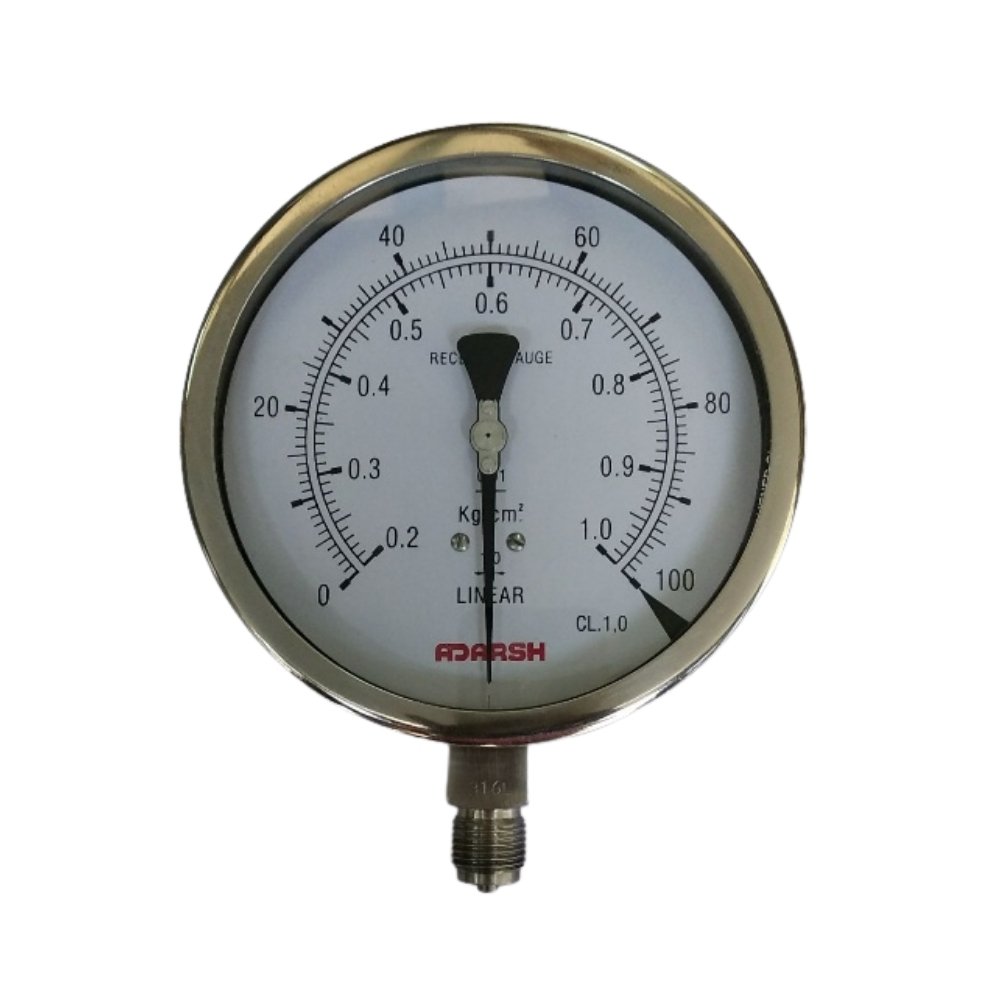

Receiver Gauge

Receiver Gauges are precision instruments designed for indication of standard pneumatic control signals of 3–15 psi (0.2–1 bar) used in process control systems. These gauges function as signal receivers for pneumatic transmitters and controllers, converting the input signal into a calibrated visual display of the measured variable.

The dial can be configured to indicate 0–100% linear output, square root scale for flow measurement, or direct engineering units, enabling clear and accurate process interpretation at a glance.

Pneumatic instrumentation and control systems
Indication of transmitter output signals (3–15 psi / 0.2–1 bar)
Flow, level, pressure, and temperature monitoring
Control panels, DCS panels, and field instrumentation
Oil & gas, chemical, power, and process industries
Calibration and testing benches

Designed for standard pneumatic signal input
High accuracy and repeatability
Available in linear and square root scales
Direct indication in engineering units possible
Dial clarity for precise reading
Robust construction for industrial environments
Long-term stability and reliability

Dial Sizes: 100, 150 mm
Mounting: Bottom / Back / Panel Mounting
Accuracy: ±1.0% FSD or better
Input Signal: 3–15 psi / 0.2–1 bar
Scale Options:
– 0–100% linear
– Square root (flow applications)
– Custom calibrated engineering units
Case: Stainless Steel
Wetted Parts: SS316
