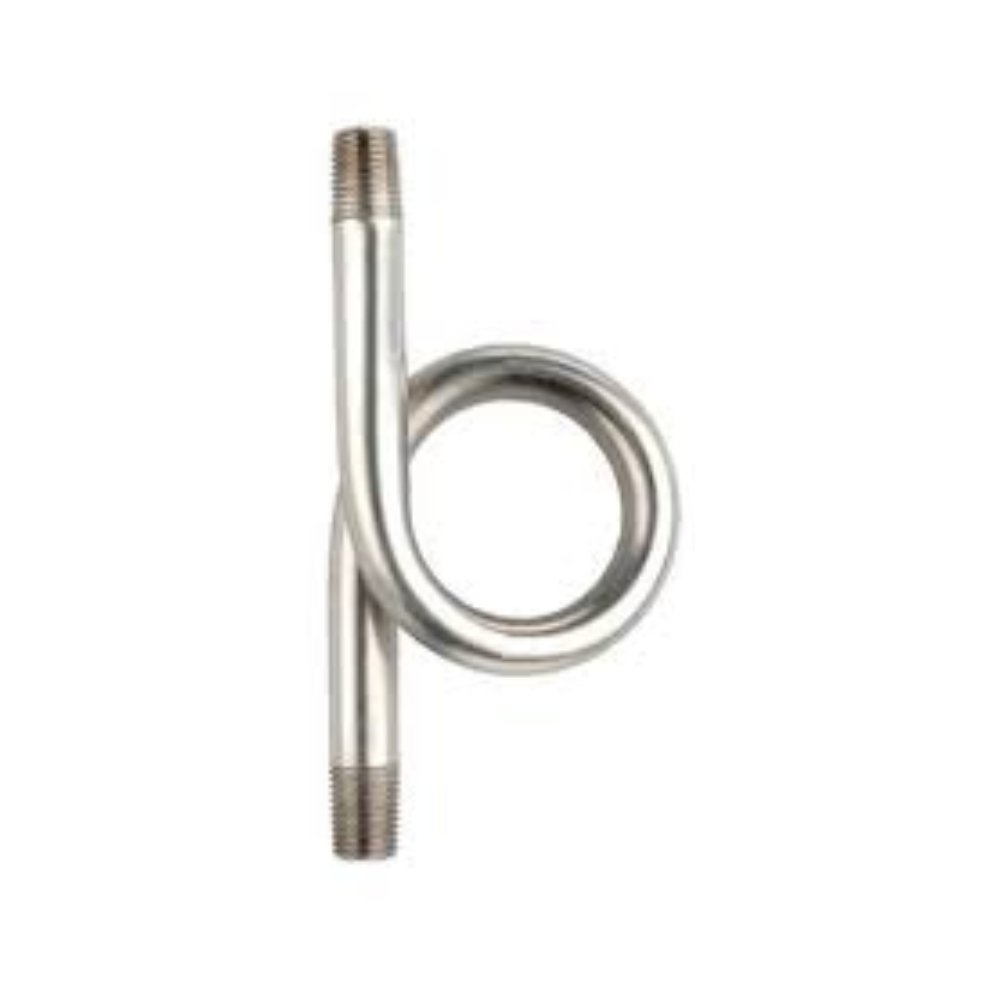

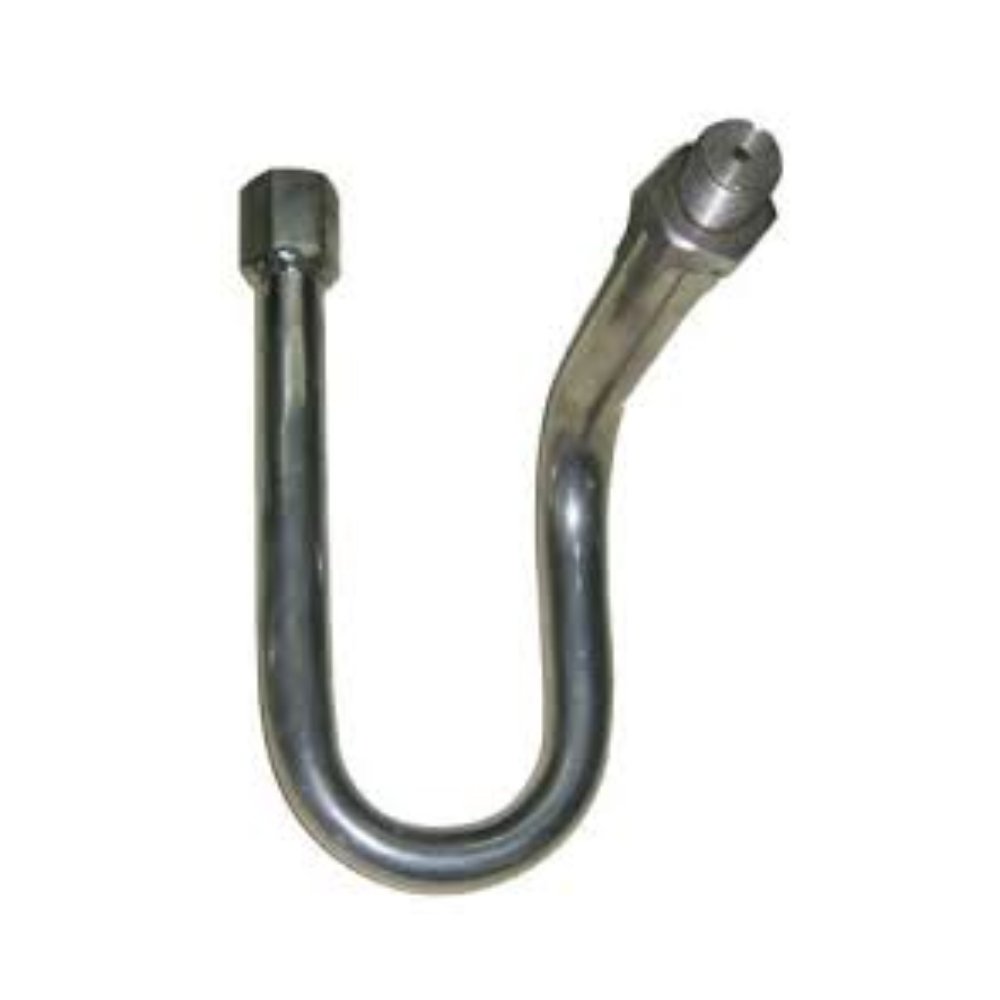

Syphon (Pigtail / U-Type / Coil Type)

Product Type: Syphon / Steam Syphon
Types Available: Pigtail (Coil Type) / U-Type / Circular Type
Material: Stainless Steel (SS304 / SS316), Carbon Steel,
Connection Size: 1/4", 3/8", 1/2" BSP / NPT
Pressure Rating: Up to 135 bar at 400 deg C for SS MOC(depending on design)
Temperature Handling: Suitable for high-temperature steam applications
End Connection: Male x Female / Female x Female / Male x Male
Mounting: Inline between process and pressure gauge

A Syphon is a protective accessory used with pressure gauges and transmitters in steam and high-temperature applications. It acts as a cooling element by forming a liquid barrier between the hot process media and the instrument.

By reducing the temperature of the fluid entering the gauge, the syphon protects internal components and ensures accurate and reliable pressure measurement.
