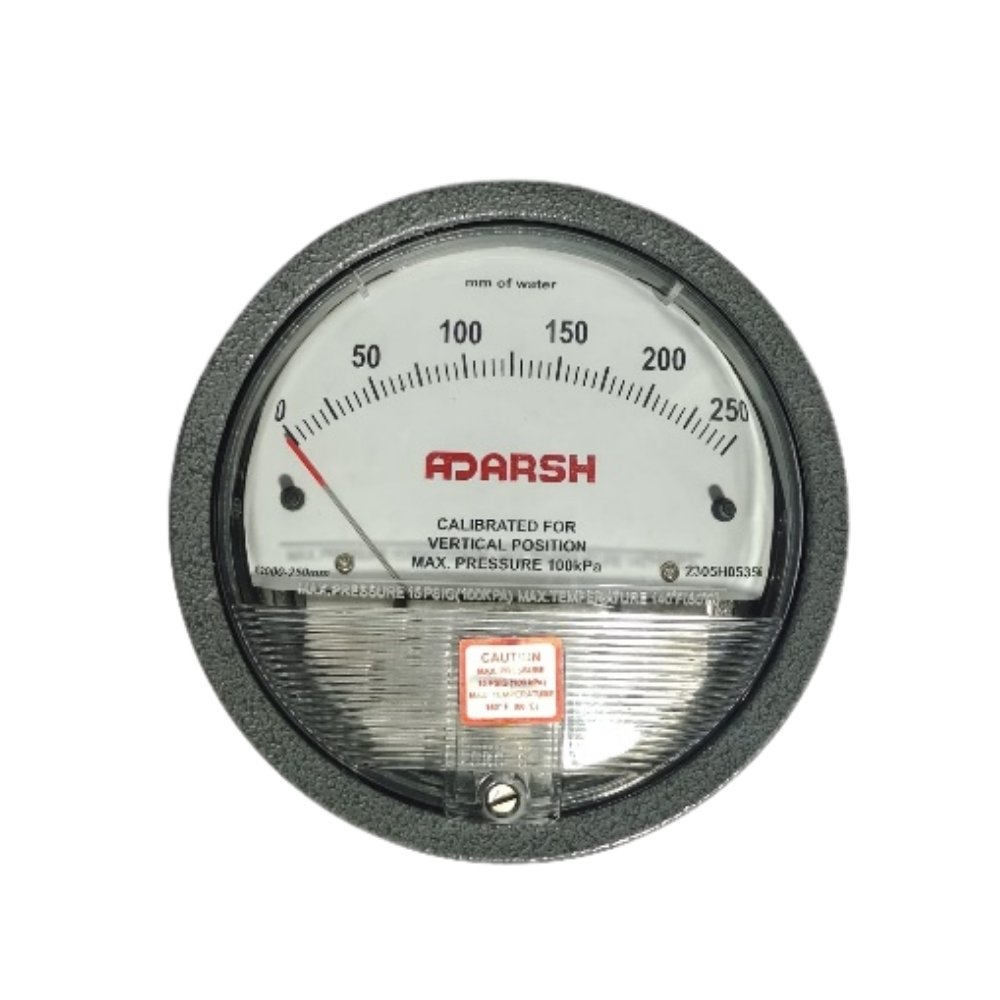

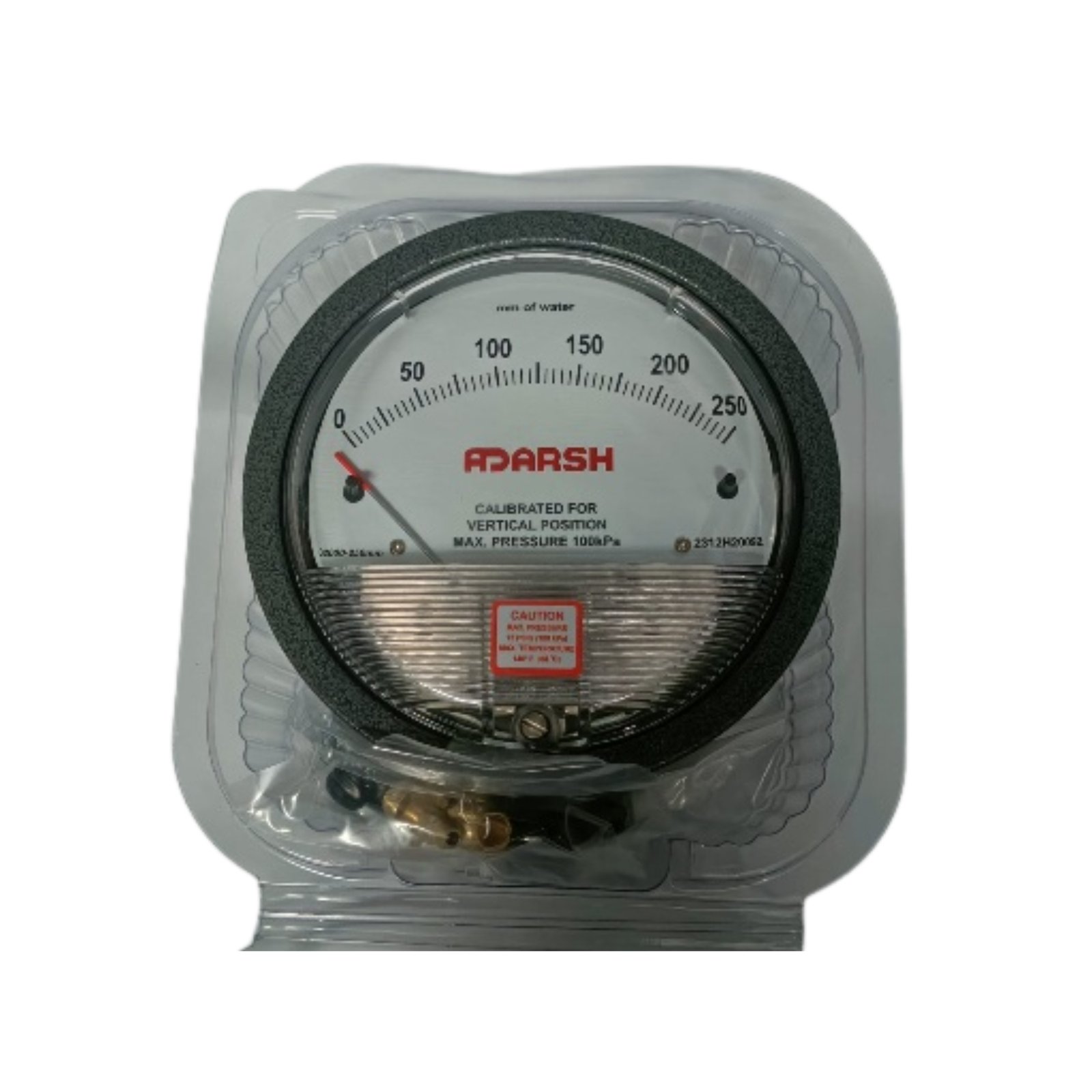

Large 4.5" dial for easy readability
Magnetic coupling ensures frictionless and wear-free movement
High sensitivity for low pressure measurement
Suitable for air and non-corrosive gases
No direct contact between sensing element and pointer mechanism
Excellent repeatability and long-term stability
Compact, lightweight, and durable design
- Dial Size: 4.5" (115 mm)
- Pressure Range: 0–6 mmWC to 0–250 mmWC
- Bi-directional Ranges: Available (± ranges)
- Accuracy: ±2% of full scale
- Case: Die-cast aluminum
- Window: Acrylic
- Mounting: Flush
- Connection: 1/8” npt F with Hose connection (suitable for low pressure)
- Media: Dry Air / non-corrosive gas
- Clean rooms and HVAC systems
- Filter monitoring (AHU / FCU)
- Laboratory and pharmaceutical environments
- Air flow and duct pressure measurement
- Static pressure monitoring

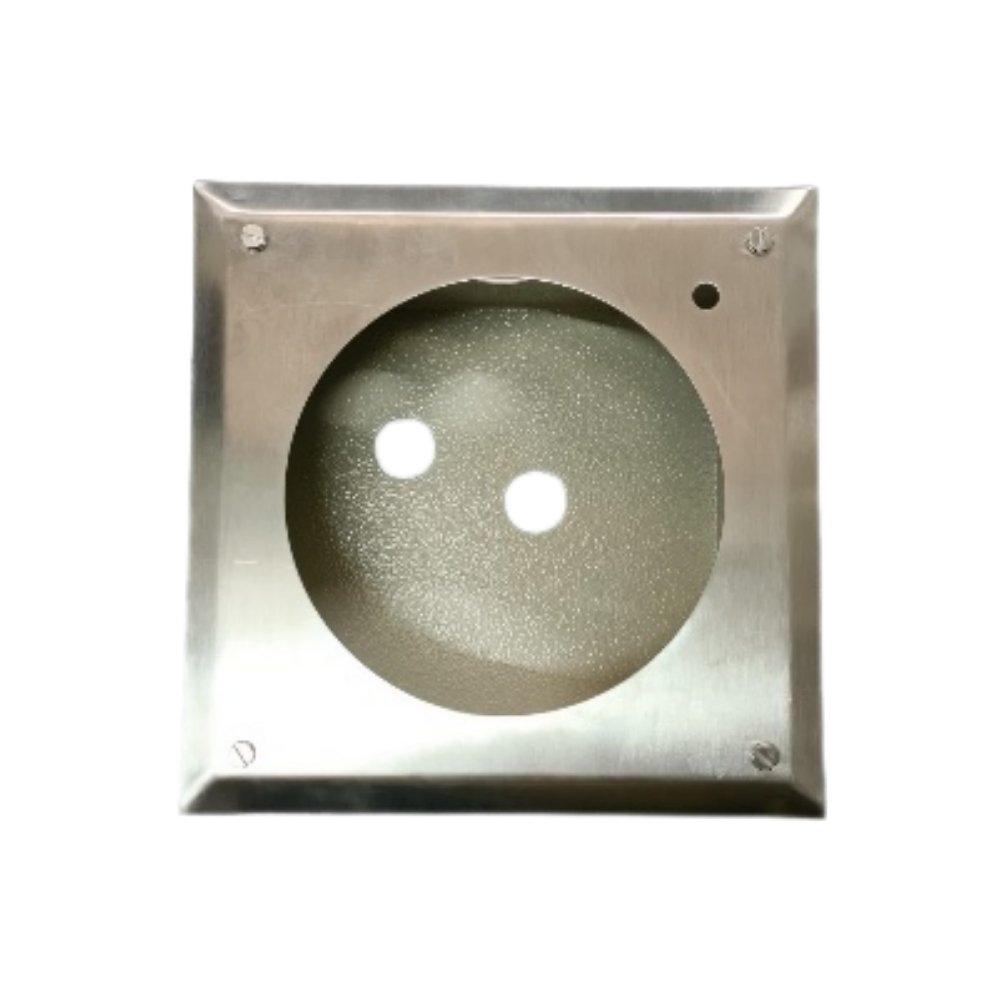

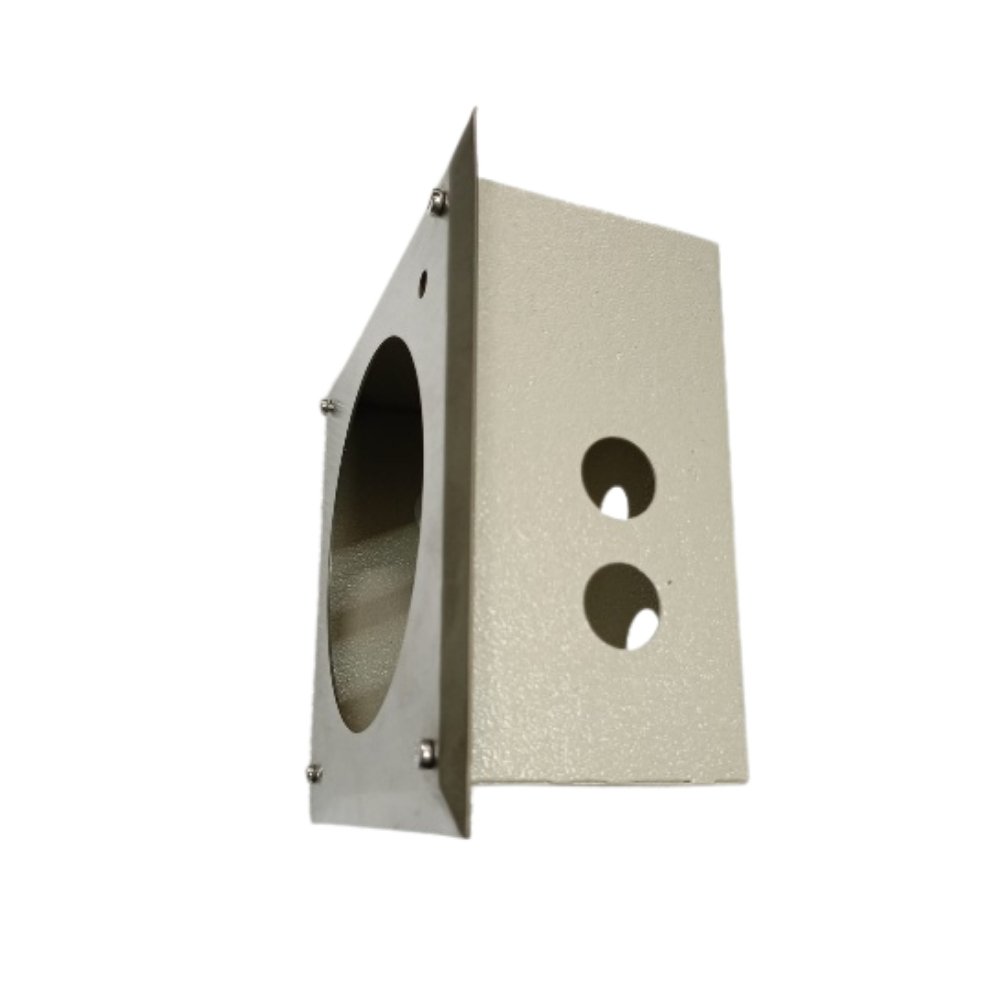

- DP Box in SS / MS
- Custom pressure ranges and scales
- Dual scale (mmWC / Pascal / inch WC)
- Panel mounting accessories
- Colored zone markings on dial
- OEM branding and customized dial design
